200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver

Product Categories
Shenzhen Keysun Technology Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver

Place of Origin : Guangdong, China

Brand Name : KSPOWER

Model Number : KSHL

Certification : UL/cUL/CE/TUV-GS/RoHS/Class2

MOQ : 5 pieces

Price : $14.80-64/pieces

Warranty(Year) : 5-Year

Lighting solutions service : Lighting and circuitry design

Output Power : 30W-320W

Output Type : PWM

Input Voltage : 100-277V

Output Frequency : 50/60Hz

Output Current : 0.62A-16.66A

Product Name : Dimming led driver

Material : Aluminum Case

Warranty : 5 years

Protection : OCP, OVP, SCP, OTP

IP Rate : IP65:IP67

Efficiency : ≥91%

Power : 30w 40w 60w 80w 96w 100w 120w 150w 180w 200w 240w 300w 320w

Output : 12V 24V 36V 48V

Application : LED Strip Light,Pendants, Linears,Cove Lights

Contact Now

200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
Products Description

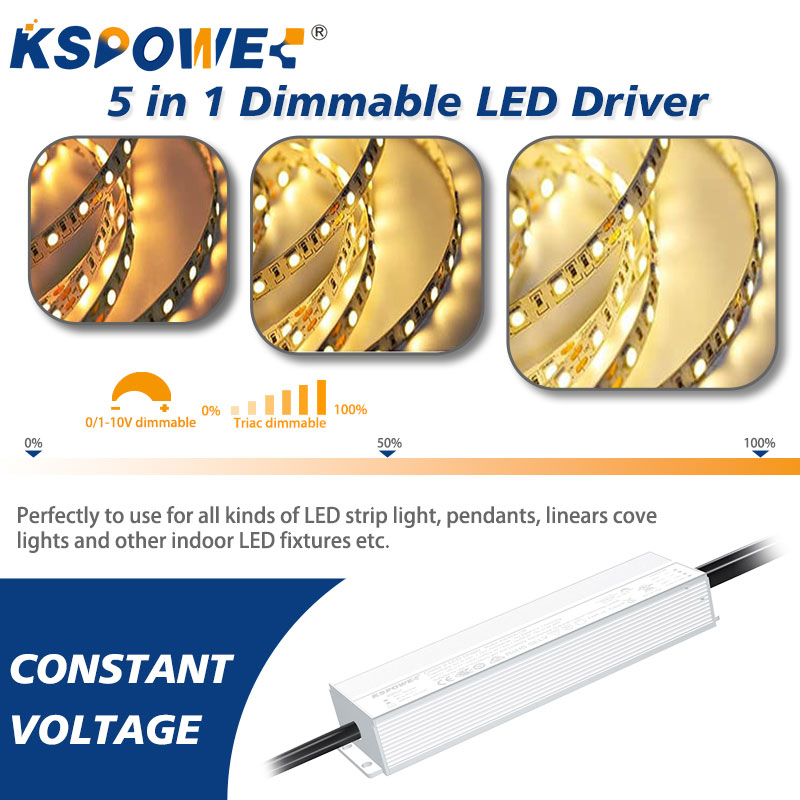

40w 60w 80w 96w 100w 120w 150w 180w 200w 240w 300w 320w 12v 24v 36v 48v lighting transformer 0-10v triac dimmable LED Driver

200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
Features:

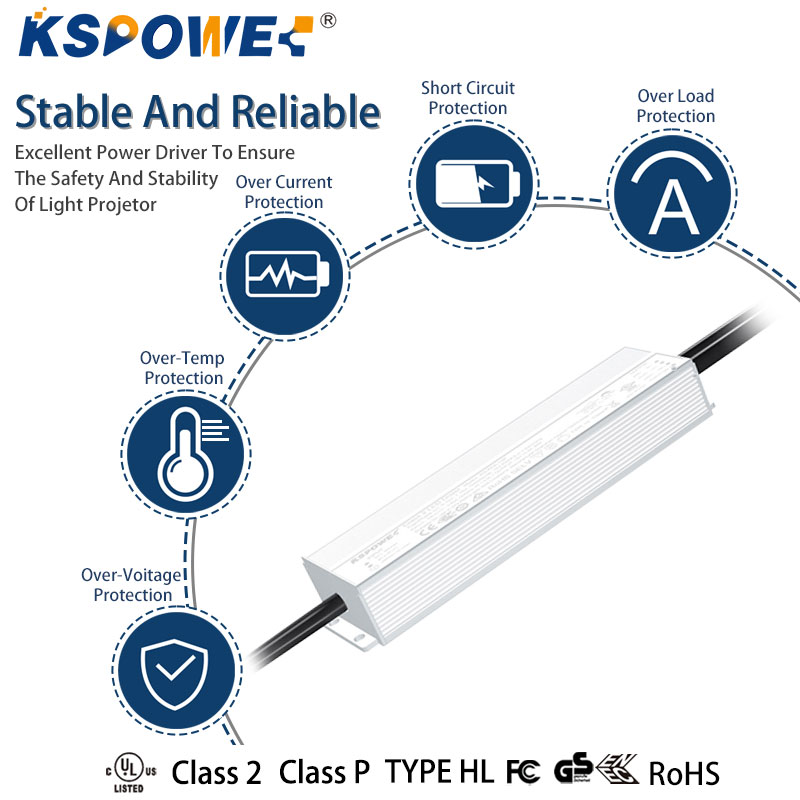

− Universal AC input voltage 100-277VAC − Efficiency up to 91% − Built-in active PFC function − Single channel & constant voltage mode and PWM style output − Protection: OCP, OVP, SCP, OTP − Limited Power Source − cUL, RoHS, CE, ENEC, GS, Class P, SAA Approved − Function options: 1. Non-dimmable 2. Triac/Phase-cut Dimmable 3. 4 in 1 dimmable (0-10V,1-10V,PWM,resistance) 4. 5 in 1 dimmable (0-10V,1-10V,TRIAC,PWM,resistance) − Typical lifetime > 50000 hours − 5 years warranty − Available with or without integrated Junction Box − IP65 IP67 Rated Enclosure for Indoor and Outdoor Use − Wiring Compartments with Knock-Outs for Clean and Easy Installation

Note:Any custom label/package/case is acceptable, provide OEM and ODM service
Input Voltage
100~277V AC 47~63Hz
Power Factor
PF≧0 98/115VAC, PF≧0 95/230VAC, PF≧0.9/277VAC, 80% with load
NO.
KSHL
Output Voltage
12volts/ 24volts/ 36volts/48volts
Rated Current
0.62A-16.66A
Rated Power
30w 40w 60w 80w 96w 100w 120w 150w 180w 200w 240w 300w 320w
Certification
UL/cUL/CE/TUV-GS/RoHS/FCC/Class2
200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
Show Details
200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
Company Profile
200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
Working Room
200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
Specification:
200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
Nearly ¥3 Million Is Spent On Certification, Just To Make Customers Trust Our Quality
Exhibition
Hong Kong Exhibition in April 2024
200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
Product packaging
1.Sample is available.
2.Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
3. for 60W power adapter : each one put in one small inner brown box, then 50 pcs put in one standard carton.
Package
Piece/Carton(pcs)
Piece Weight(KG)
OEM package
50
0.26
Dimension/Brown Box(mm)
Dimension/Carton(mm)
Gross Weight/Carton(KG)
155*85*35
455*370*175
14
200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
FAQ
200w 300w 0-10v LED Dimmer OTP Output Frequency 60Hz Aluminum Case 0-10v Dimming Driver
