Aluminum Case Outdoor LED Driver Input Voltage Class2 Flicker Free 24v 40w 60w 80w 100w Ip65

Name: Aluminum Case Outdoor LED Driver Input Voltage Class2 Flicker Free 24v 40w 60w 80w 100w Ip65
Brand: KSPOWER
Price: 13.80 USD

China Aluminum Case Outdoor LED Driver Input Voltage Class2 Flicker Free 24v 40w 60w 80w 100w Ip65 factory

Place of Origin : Guangdong, China

Brand Name : KSPOWER

Model Number : KSH-12

Certification : UL 8750 Class2 Class P EN61347 GS ENEC

MOQ : 2 pieces

Price : $13.80-33.80/pieces

Warranty(Year) : 5-Year

Lighting solutions service : Lighting and circuitry design

Output Power : 40W / 60W / 80W/ 100W

Output Type : PWM / Single

Input Voltage : 100-277V

Output Frequency : 50/60Hz

Product Name : Class2 IP65 waterproof dimmable led driver

Application : LED Strip Light,Pendants, Linears,Cove Lights

Material : Aluminum Case

Warranty : 5 years

Protection : OCP, OVP, SCP, OTP

IP Rate : IP65

Efficiency : ≥90%

Power : 40W / 60W / 80W/ 100W

Output : 24V

Contact Now

Aluminum Case Outdoor LED Driver Input Voltage Class2 Flicker Free 24v 40w 60w 80w 100w Ip65

24V 40W 60W 80W 100W Class 2 Class P driver, 0/1-10V, 10V PWM, Resistance, phase dimming 5 in 1 dimmable LED driver is constant voltage solution, and the perfect choice for under cabinet lighting and other residential and commercial lighting fixture applications.

Products Description

Class 2 24V 40W 60W 80W 100W Junction Box LED Drivers

24 24.0 V Vdc Volt Volts 24.0V 24volts 24vdc 40 60 80 100 W Watt Watts 40Watt 60Watt 80Watt 100Watt 40Watts 60Watts 80Watts 100Watts

KS-150W is a versatile 40W/ 60W /80W /100W 5-in-1 universal dimming Class II driver that accepts 100-277VAC input voltage and provides 24VDC constant voltage output. KS-150W delivers flicker free dimming to 0% on all dinning systems including Triac, 0-10V, 1-10V, PWM, Resistance, MLV, ELV and Incandescent. The high efficiency of the driver and sophisticated overload protection enables the electronics to run cooler and significantly improve reliability while extending product life.

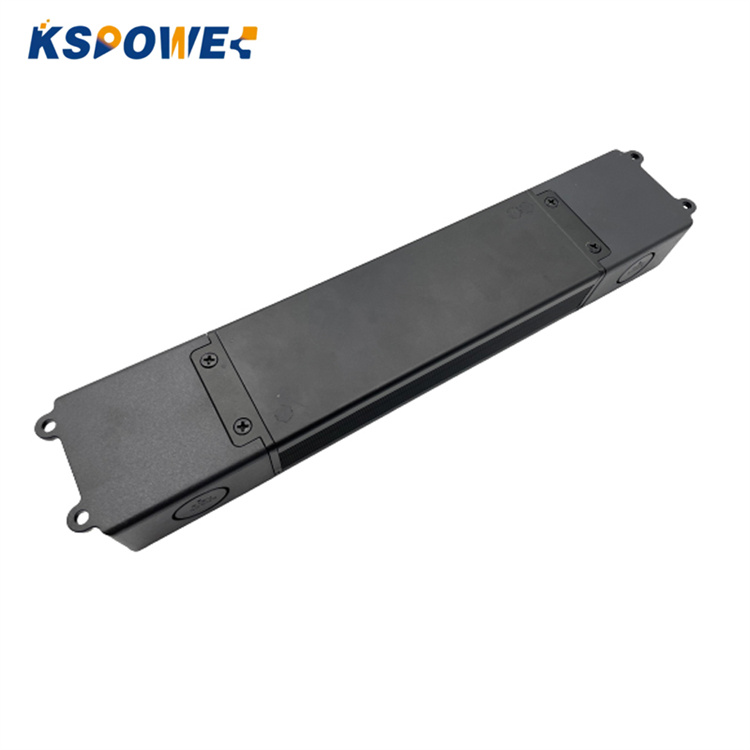

The compact metal case is dry/damp location listed and IP65 rated, making it suitable for a wide range of indoor/outdoor architectural, commercial, industrial, and residential lighting applications. KS-150W is available with or without integrated junction boxes on both the input and output side that have two knockouts each.

Features:
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 24Volt
* Driver Type: Class 2 Class P
* Enclosure:LISTED Enclosure with Junction Box / LISTED Enclosure without Junction Box

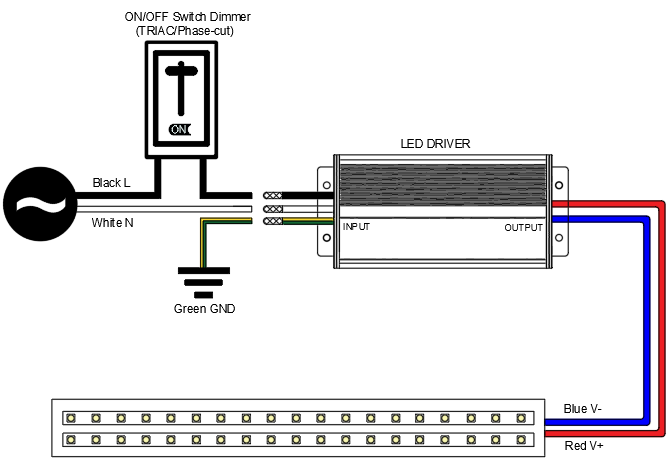

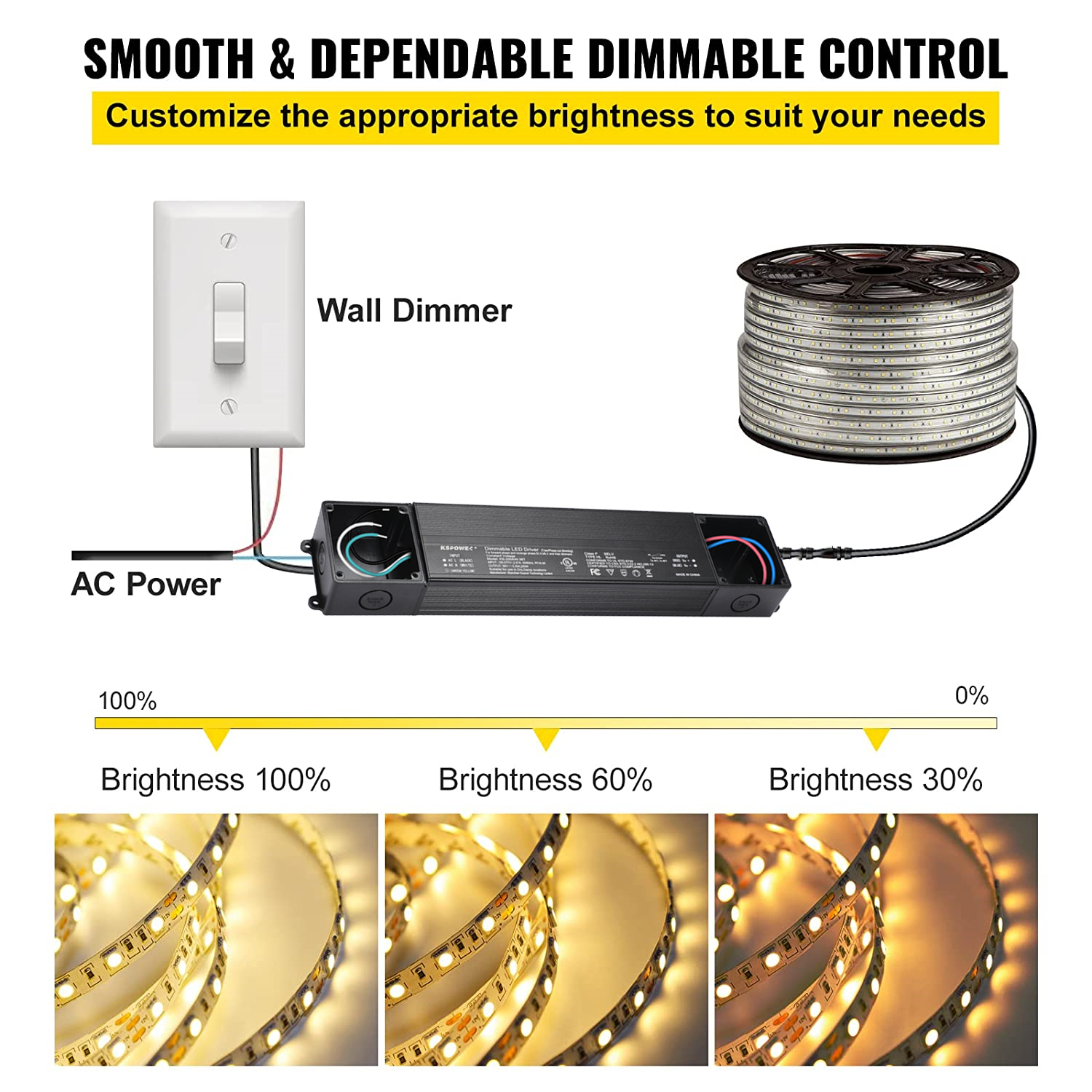

* Dimming: PWM, TRIAC, 0/1-10V or MLV / ELV Resistance Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage

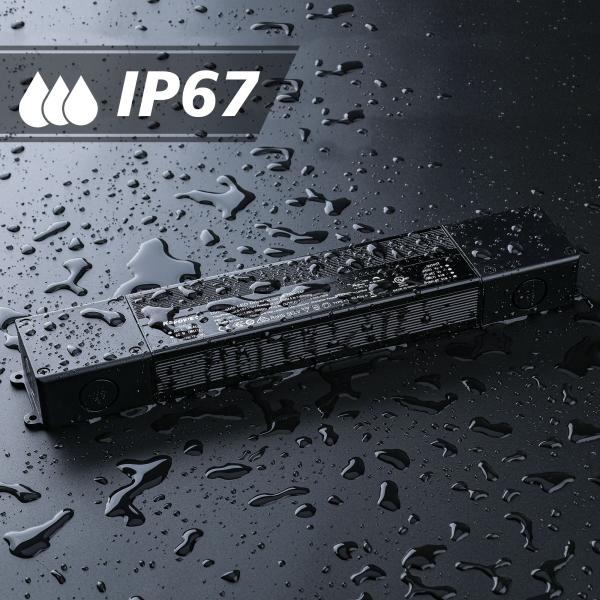

* IP65 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL

Note:Any custom label/package/case is acceptable, provide OEM and ODM service

NOW,GET MORE INFORMATIONS OF US !

Company Profile

Working Room

Specification:

Nearly ¥3 Million Is Spent On Certification, Just To Make Customers Trust Our Quality

Exhibition

Product packaging

1.Sample is available.

2.Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
3. for 60W power adapter : each one put in one small inner brown box, then 50 pcs put in one standard carton.

Package	Piece/Carton(pcs)	Piece Weight(KG)
OEM package	50	0.26
Dimension/Brown Box(mm)	Dimension/Carton(mm)	Gross Weight/Carton(KG)
1558535	455370175	14
